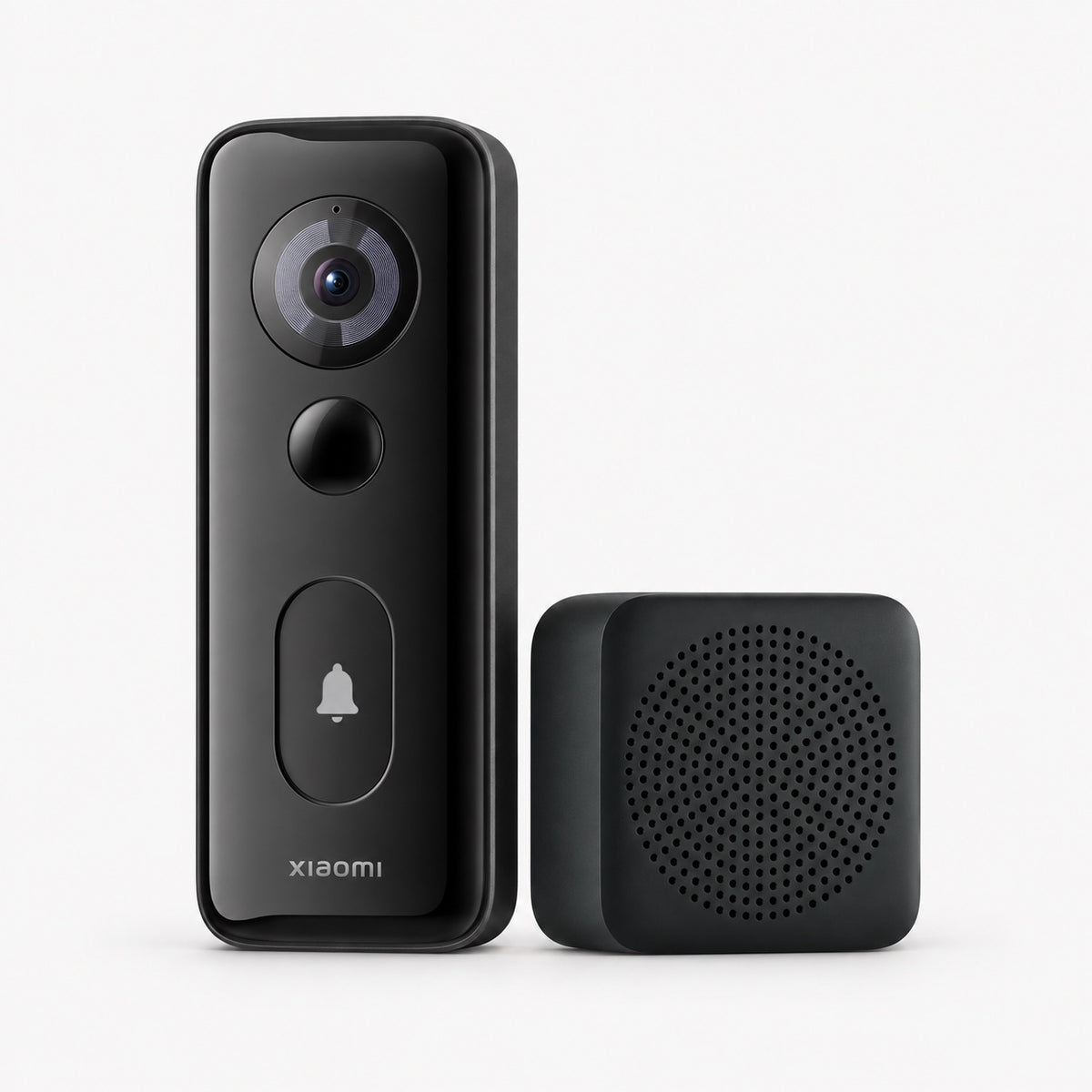

Xiaomi Smart Doorbell 3S

A 2K video doorbell with a 180° view, infrared night vision and a separate chime. It runs on its own battery or wires into your existing doorbell, so you can see and talk to visitors from your phone.

Key features

• 2K resolution — faces are clearer than on a 1080p doorbell.
• 180° ultra-wide view — 180° diagonal and 107° vertical, so you see everyone at the door.
• Night vision from 6 high-power 940nm infrared illuminators.
• Two power options — a 5200mAh rechargeable battery, or hardwired to a doorbell AC transformer.
• IP65 water and dust resistance for use outdoors in bad weather.
• Free 72-hour cloud storage — rolling storage of recent footage with no subscription.
• Two-way voice calls with visitors.
• Chime included — rings indoors over RF 433MHz.

Good to know

• Connects over 2.4GHz Wi-Fi only.
• Charge the battery at 0°C to 45°C.

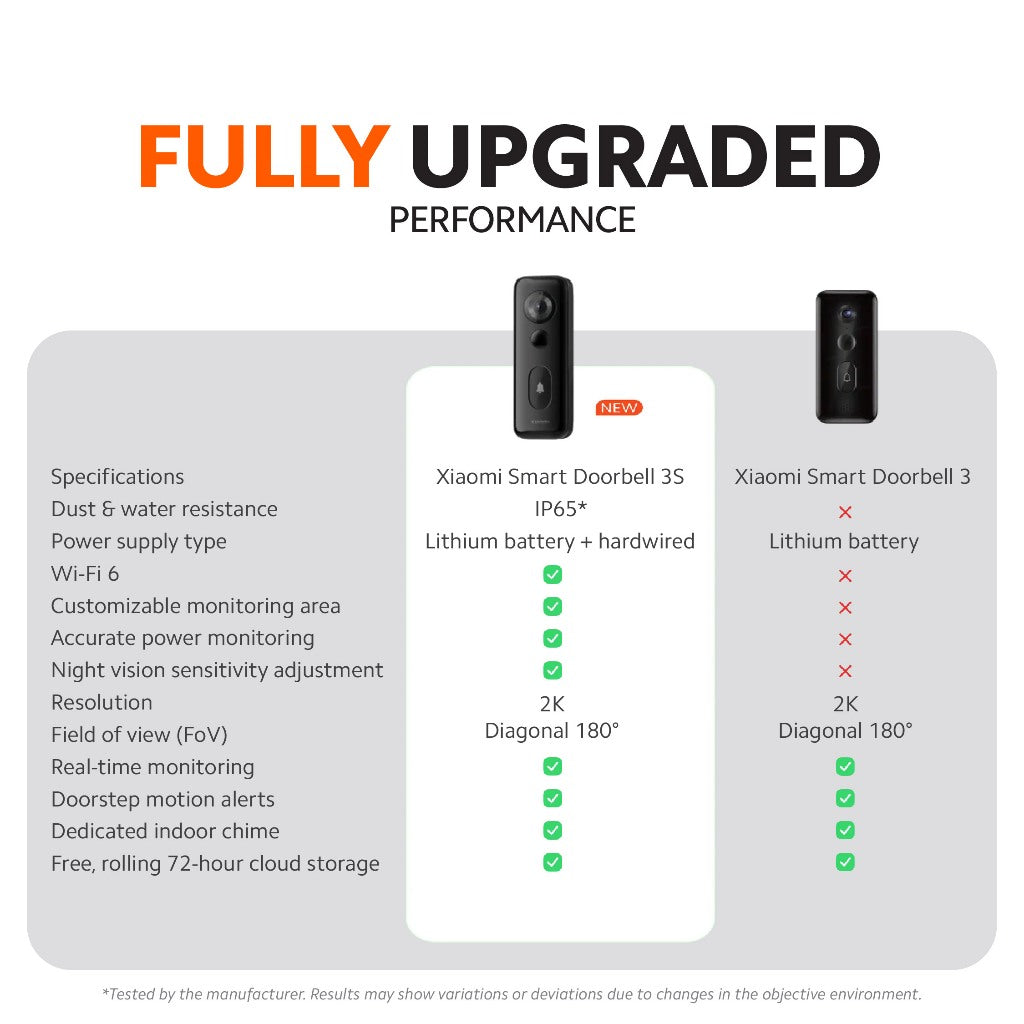

Specifications

• Doorbell model: MJML07-FJ
• Size: 146 × 52 × 29mm · IP65
• Battery: 5200mAh (typ)
• Rated input: 5V⎓2A (Type-C port); 8–24VAC, 10–40VA, 50–60Hz (doorbell AC transformer)
• Wireless: Wi-Fi IEEE 802.11b/g/n 2.4GHz, RF 433MHz
• Operating temperature: -20°C to 50°C · Humidity: 10%–90% RH, non-condensing
• Chime model: MJJSQ04-FJ · 60 × 60 × 39.6mm · 5V⎓1A · RF 433MHz (receive only) · 0°C to 45°C

In the box

• 1 × Smart doorbell
• 1 × Mounting base
• 1 × Angle holder
• 1 × Chime
• 1 × Removal pin
• 1 × Type-C charging cable
• 1 × Screw bag (2 wall screws, 2 wall plugs, 2 angle holder screws)
• 2 × U-type extension wires
• 2 × Insulating caps
• 1 × U-type double terminal wire
• 1 × User manual
• 1 × Attention sticker
• 1 × Warranty notice

Warranty

1-year Xiaomi Malaysia warranty.
